Crawled dumper transport machine TCM-220-10
The TCM-220-10 Track Chassis Transporter is mainly used to transport bulk materials in the field terrain, with a maximum load capacity 10 tons, with dumpfuction system. The machine chassis is a specially designed fully hydraulically driven chassis with strong off-road capability, which can be carried out in desert, pine, plateau and other harsh environment spree areas.
As an energy source, this machine uses a diesel engine of the world famous Cummins brand. The running system uses a technically Mature transmission with a closed hydraulic system, which has the advantages of simple construction, reliable transmission, no lubrication, less maintenance and long service life.
The hood of the machine is designed for convenient daily maintenance.
The car is also equipped with a tool box to facilitate the storage of small working tools.

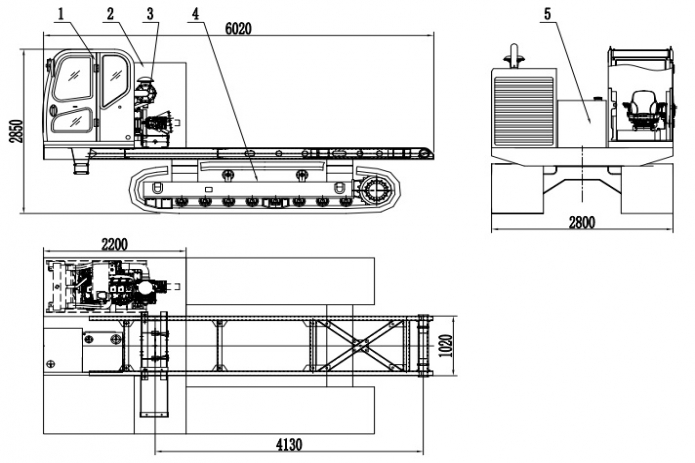

Table of symbols:
1. – operator's cabin and control system;
2. – engine hood;
3. – diesel engine;
4. – chassis
5. – fuel tank
Main parameter |
|
Model |
TCM-220-10 |
Operating weight, kg |
11500 |
Load Capacity, kg |
10000 |
Working temperature, °C |
-20 ~ 40 |
Altitude, m |
≤2,000 |
Engine |
Cummins QSC8.3-C220 |
Engine power, kW/Hp |
162/220 |
Drive system |
Fully hydraulic |
Shoe type |
Triple grouser steel track shoe |
Shoe width, mm |
600 |
Minimum clearance, mm |
550 |
Max. speed, km/h |
0-5 |
Fuel tank capacity, L |
260 |
Dimensions(L*W*H), mm |
6020*2800*2850 |
Climbing angle° |
30 |
Additional equipment (optional) |
|
Engine compartment fire extinguishing system |
1 set |
Autonomus pre-heater (Webasto) |
1 set |
