Crawled dumper transport machine TCM-260R-16

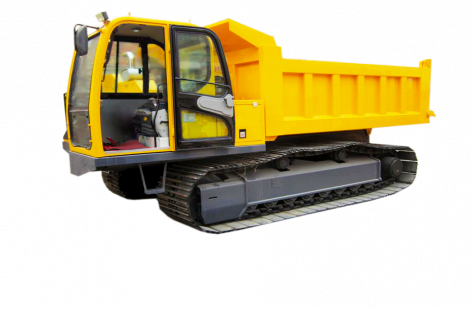

The TCM-260R-16 Track Chassis Transporter is mainly used to transport bulk materials in the field terrain, with a maximum load capacity 10 tons, with dumpfuction system. The machine chassis is a specially designed fully hydraulically driven chassis with strong off-road capability, which can be carried out in desert, pine, plateau and other harsh environment spree areas.

As an energy source, this machine uses a diesel engine of the world famous Cummins brand. The running system uses a technically Mature transmission with a closed hydraulic system, which has the advantages of simple construction, reliable transmission, no lubrication, less maintenance and long service life.
The hood of the machine is designed for convenient daily maintenance.
The car is also equipped with a tool box to facilitate the storage of small working tools.

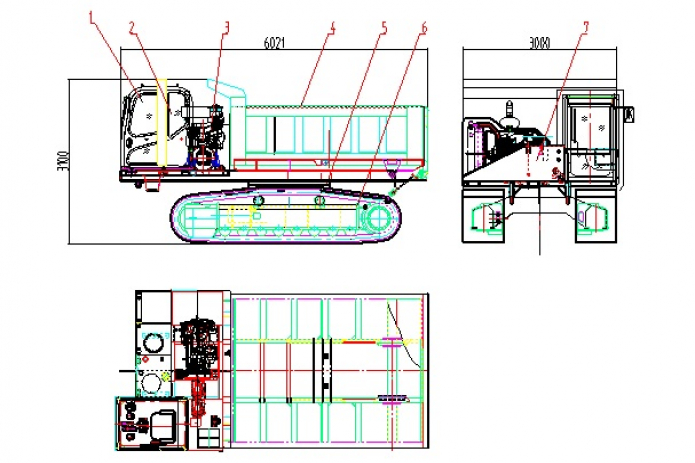

Dimensions

Table of symbols:
1. – Operator's cabin and control system;
2. – Engine hood;
3. – Engine system;
4. – Dump Trunk Assembly
5. – Rotate System
6. – Crawled Chassis
7. – Combined Fuel Tank

Description of equipment

Main parameter
Model	TCM-260R-16
Operating weight, kg	14000
Load Capacity, kg	16000
Working temperature, °C	-40 ~ +40
Altitude, m	≤3,000
Engine	Cummins 6CTA8.3-C260
Engine power, kW/Hp	194/263
Drive system	Fully hydraulic
Shoe type	Triple grouser steel track shoe
Shoe width, mm	800
Minimum clearance, mm	550
Max. speed, km/h	0-11
Fuel tank capacity, L	300
Dimensions(L*W*H), mm	6021×3000×3100
Climbing angle°	30
Configuration list
Crawled Chassis	1 standard
Engine	1 standard
Combined fuel tank	1 standard
Dumper	1 standard
Rotary device	1 standard
Operators cabin	1 standard
Hydraulic system	1 standard
Electric System	1 standard
Anti-trump cab	1 optional
Exhaust purification device	1 optional
Engine compartment fire extinguishing device	1 optional
Engine pre-heater	1 optional

Hydraulic pumps are made by Sauer Danfoss, U.S.

Hydraulic motor wheelside gearbox uses German Rexroth Bosch products.

Engine Cummins product
